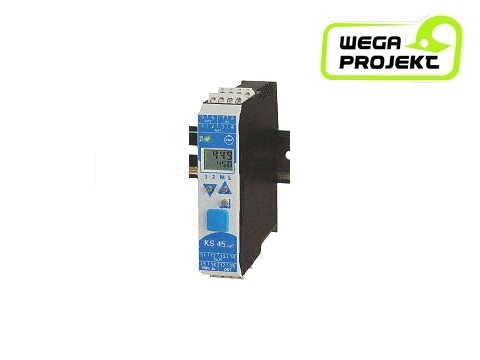

KS45 UNIVERSAL CONTROLLER FOR DIN RAIL PID KS45
PID KS 45 - universal industrial controller for DIN rail for universal use.
Enables cheap and precise adjustment. This is the second device from the Rail Line series, intended for mounting on a rail.
Basic technical data:
- DIN rail mounting
- 2 and 3 point, step or ON / OFF control
- direct communication between mounted controllers - easy integration with PLC and PC
- two-line LCD display
- compact dimensions, only 22.5 mm (0.87 ") wide
- the measured value is always visible
- configuration using 3 keys
- connecting wires using screw sockets or a spring latch
- galvanic isolation between inputs / outputs and power / communication
- universal entrance
- second auxiliary input - measurement of heating current, external setpoint, etc.
- universal output, combined voltage / current output
- fast response, 100 ms cycle
- 2 relay or opto-isolated outputs
- self-tuning function
- DIN EN 14597
Examples of configuration numbers:
- KS45-112-00000-000
- KS45-113-00000-000
- KS45-113-0000E-000
- KS45-112-1000E-000
- KS45-110-0000E-000
- KS45-112-0000E-000
- KS45-113-21000-000
- KS45-113-22000-000
