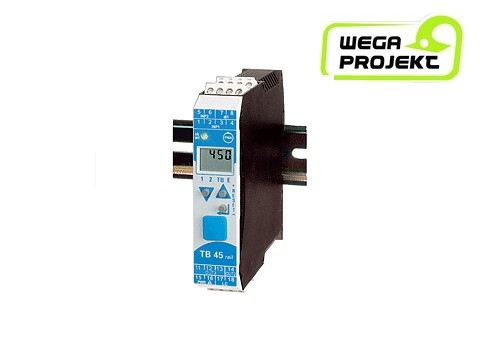

DIN RAIL STOPPER TB 45
TB 45 - certified temperature limiter for mounting on a DIN rail.
TB 45 is the latest in the RAIL LINE series, designed for rail mounting. Its advantages are a compact structure (width: 22mm) and high-quality workmanship.
Basic technical data of TB45:
- for use in the heating and cooling process
- compact dimensions, only 22.5 mm wide
- DIN rail mounting
- DIN EN 14597
- alarm clearing by means of a combination of keys or a digital input
- LCD display
- universal input
- 2 relay outputs - limits
- signaling function
Examples of configuration numbers:
- TB45-110-0000E-000
- TB45-112-0000E-000
- TB45-113-0000E-000
- TB45-112-1000E-000
Available options:
- RS 485 / system interface
- determination of oxygen content
- signal processing capabilities
- second universal input
 DIN rail stopper TB 45 - datasheet.pdf | 476 kB |
| DIN rail stopper TB 45 - user manual.pdf | 498 kB |
